天磬音响

X60

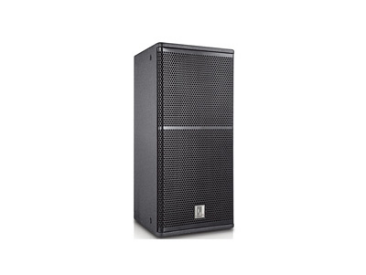

X60是一款2分频的设计的中高音线性阵列音箱，使用1只8寸的低频喇叭单元和1只1寸高音喇叭单元组成。

Scope of application适用范围：

流动演出、体育场馆、剧场、礼堂、多功能厅等高水准声音重放要求的场所。

Technology Parameters音箱技术参数：

Drivers单元组成:                           LF低频:1x8”Voice-coil

                                           HF高频:1x1”Voice-coil

Frequency频率响应（-3dB）:                 60-20000 hz赫兹

Dispersion覆盖角度（-6dB）:                90 °（h水平）×50 °（v垂直）

Sensitivity灵敏度:                        98db

MaximumSPL声压级输出:                     124db/aes连续；127db/peak峰值

Nominal  Impedance标准阻抗:                 8Ω 欧姆

Rated  Power输入功率:                       275w（aes额定）/600w（peak峰值）

Recommended  AMP功放功率要求:               500 - 800W 8Ω

Crossover  Frequency分频点:                 2000hz 赫兹

Finish表面处理:                           黑色环保水性耐磨油漆涂装

                                           Environmentally friendly water-based

                                          wear-resistant  black paint

Connectors输入连接器:                      2×Speakon NL4MP

Handing  Position吊装:                     自身多点螺丝承重吊挂

                                          multi-screw  bearing hanging

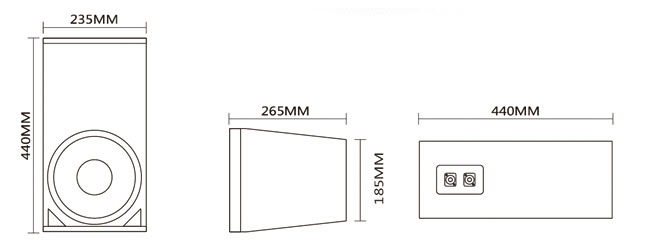

Dimensions外形尺寸（h高×w宽×d深）:       440mm×235mm×265mm

Net  Weight净重:       11kg
